"MiniCell"™- small portable CO₂ Incubator

• Compact incubator with carrying handle for easy transport
• Capacity: 15.2 l
• Internal dimensions (w x d x h): 224 x 200 x 340 mm
• External dimensions (w x d x h): 292 x 333 x 433 mm
• Weight: 6.8 kg
• Temperature range: 15 °C to approx. 45 °C at ambient 25 °C
• Cooling and heating by Peltier system for low-noise operation
• CO₂ range: 0 to 20 % (infrared sensor)
• User-friendly, digital control with LED display
• Uniform temperature
• Supplied with water tray for natural humidity up to 80 %
• Supplied with 2 stainless steel shelves  (max. 3 shelves can be fitted)
• Also available as CO₂ incubator: CO₂ range: 0 to 20 % (infrared sensor)

CO₂ Incubators with or without Touch Screen

• Temperature range: 5 °C above ambient to 60 °C
• CO₂ range: 0 to 20 % (infrared CO₂sensor)
• 5 different incubators with various capacities (15, 42, 180, 280 and 880 liters).
• LED display
• Stainless steel interior and shelves (perforated)
• Double door: compact outer door and clear tempered safety glass inner door
• Heated door prevents condensation on glass door
• Supplied with water tray for natural humidity
• Optional features:
  • UV or hot air sterilization
  • Split inner glass door
  • Humidity control or display only - CO₂ control
  • HEPA filter
  • Kit to enable stacking of incubators
  • Copper interior instead of stainless steel
  • 25 mm Access port on left side
  • Further features available on request

“Max Cell”™ - large capacity CO₂ Incubators - 880 liter

• Temperature range: 7 °C above ambient to 60 °C  (± 0.5 °C at 37 °C)
• CO₂ range: 1 to 20 % (Dual Beam IR CO₂ Sensor); CO₂ accuracy: ± 0.1 % at 5 %
• Incubator with a microprocess PID control
• Air jacket, 6 sides direct heating
• Stainless Steel 304 interior and perforated shelves
• Double door: powder coated outer door (heated) and clear tempered glass inner door (optional heated)
• Supplied with water tray for natural humidity (80 – 90 %) or optional ultra sonic humidifier
• Quantity of shelves depends on the model (0 – 5)
• 7 inch full colour and user-friendly LCD touchscreen
• Internal memory for recording up to 6 months with a USB 3.0 Port
• Real-time monitoring system with a screen lock
• Alarm for temperature, CO₂, open door, sensor failure
• Independent analogue thermostat for temperature safety
• 4 x Fans at back bottom-most / Vertical Laminar Airflow
• 2x Access Ports (each at left and right side)
• Mobile due to four adjustable castors
• Further optional features and accessories on request

Large CO₂ Incubators "Anicell" with integrated orbital shakers

• Two models with capacities of 650 l and 850 l
• Temperature range: 5 °C above ambient to 60 °C
• CO₂ range: 0 to 20 % (infrared sensor)
• HEPA filter
• Outer door with magnetic lock
• Built-in UV lamp (4 W) with on/off switch
• Interior divided into 3 compartments, separate inner door (made of tempered safety glass) per compartment, and 1 orbital shaker per compartment (3 shakers in total)
• Each shaker controlled separately by control panel on outside of the incubator
• Because distances between shelves can be varied and shakers can be removed 5 l to 10 l flasks can also be used
• Specifications of integrated shakers:
  • Shaking speed: 30 to 200 rpm (± 1 rpm) or 30 to 250 rpm (± 1 rpm)
  • Orbital diameter: 25 mm
  • Dimensions of shaker (w x d x h): 465 x 520 x 125 mm
  • Dimensions of platform: 520 x 520 mm
  • Automatic stop/restart function if inner door is opened/closed
  • Choice of platforms with clamps for flasks, microplates, or tube racks available

Benchtop CO₂ Incubators with integrated orbital shakers

NB-206CL with 2 integrated orbital shakers

• Capacity: 179 l
• Two integrated shakers
• Temperature range: 5 °C above ambient to 50 °C
• CO₂ range: 0 to 20 % (infrared CO₂ sensor)
• Each shaker controlled separately by control panel on outside of the incubator
• Supplied with water tray for natural humidity
• LED display
• Outer door with magnetic lock

NB-203QS

• Capacity: 179 l
• One integrated shaker
• Temperature range: 5 °C above ambient to 60 °C
• CO₂ range: 0 to 20 % (infrared CO2 sensor)
• Shaker with external control panel
• LED display

Specifications of integrated shakers in NB-206CL and NB-203QS:

• Shaking speed: 30 to 300 rpm
• Orbital diameter: 22 mm
• Platform size: 300 x 330 mm
• Optional platform to enable switch between orbital and reciprocal motion available
• Choice of platforms with clamps for flasks, microplates, or tube racks available
• The specifications of the integrated orbital shakers and the dimensions of the incubators and compartments are listed in our product brochure mentioned below.

Incubator with integrated orbital shaker - NB-205Q

• Capacity: 142 l
• Temperature range: 5 °C above ambient to 60 °C
• Supplied with:
  • 2 shelves
  • integrated orbital shaker (low vibration): 30 to 300 rpm
• Microprocessor controlled incubator and shaker
• LED display
• Door with viewing window
• Specifications of integrated shakers
  • Shaking speed: 30 to 300 rpm
  • Orbital diameter: 22 mm
  • Platform size: 300 x 330 mm
  • Optional platform to enable switch between orbital and reciprocal motion available
• Choice of platforms with clamps for flasks, microplates, or tube racks available

Stackable Incubators with integrated orbital shaker

• Capacity: 149 l
• Two models: with cooling function (NBT207F) and without (NBT207)
• Temperature range:
  • NBT207: 5 °C above room temperature to 60 °C
  • NBT207F: 4 °C to 60 °C
• User-friendly and intuitive LCD Touch Screen
• Door with window
• LED lamp on the inside of the incubator
• Shaker controlled separately by control panel on outside of the incubator
• Automatic stop function on door opening, stops heating and platform shaking
• Standard model with integrated Access Port

Specifications of integrated orbital shaker:

• Shaking speed: 30 to 300 rpm
• Orbit diameter: 19 mm
• Plattform size: 450 x 450 mm

Shaking Incubators with touch screen

• 2 versions in different sizes
• User-friendly and intuitive LCD Touch Screen
• Clear cover opening upwards
• Temperature range: 5 °C above ambient to 60 °C
• Shaking speed: 30 to 300 rpm
• Orbital movement (Ø 22 mm)
• Shaking stops when door is opened
• Selection of platforms with clamps for flasks, microplates, or tube racks

Shaking Incubators with cooling feature

General features:

• • Shaking speed: 30 to 300 rpm
  • Orbit diameter: 22 mm
  • Shaking stops when door is opened
  • Uniform temperature inside, built-in CFC-free compressor
  • Selection of platforms with clamps for flasks, microplates, or tube racks

Benchtop incubator (NB-205LF)

• Large benchtop unit with clear cover that opens upwards
• Temperature range: 12 °C below ambient (based on 25°C RT) to 60 °C
• Defrosting system for long lasting cooling power
• User-friendly and intuitive LCD Touch Screen

Floor standing incubator (NB-205V)

• Viewing window in the door (door opens upwards)
• Temperature range: 4 °C to 60 °C
• Microprocessor controlled, LED display, stainless steel chamber
• Uniform temperature inside, built-in compressor

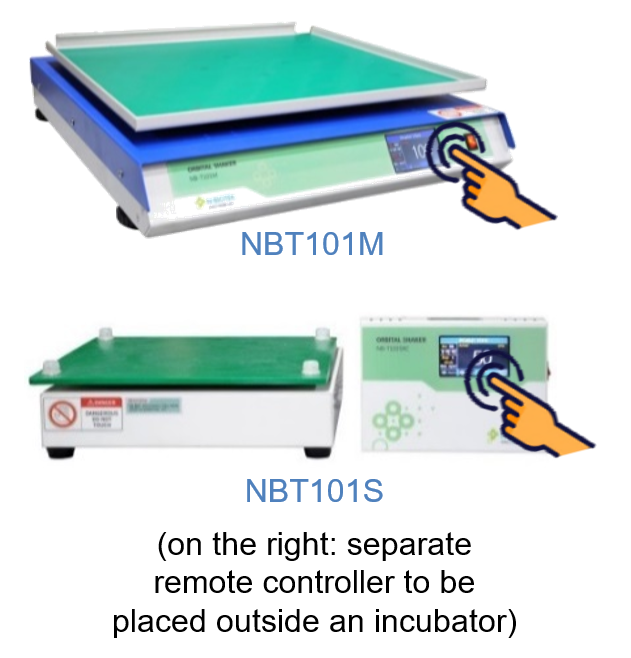

Orbital shakers with touch screen

and optional separate remote controller

• 2 versions: mini shaker and standard shaker
• User-friendly LCD Touch Screen
• Units with separate remote controller can be used in incubators with a humidity up of to 85 % and an ambient temperature of 4 °C to 60 °C
• Shaking speed: 30 to 300 rpm
• Orbital diameter: 22 mm
• Timer: 1 minute to 48 hours, or continuous operation
• LED display shows shaking speed and shaking time
• Choice of platforms with clamps for flasks, microplates, or tube racks
• Optional platform to enable switch between orbital and reciprocal motion available

Water baths

- also with shaking feature -

Water bath for general applications (NB-301)

• Water capacity: 10 l
• Temperature range: 5 °C above ambient to 99 °C
• Engraved water level scale
• Heater located underneath the water chamber
• LED display for temperature, time and power failure

Water baths with shaking feature (NB-303)

• Shaking speed: 30 to 200 rpm
• Orbital shaking movement
• Water capacity: 10 l
• Temperature range: 5 °C above ambient to 80 °C
• Heater located underneath the water chamber
• Supplied with spring wire rack for safe positioning of vessels

Vacuum evaporator

• Infrared glass lid spreads heat and infrared radiation to reduce time required for evaporation of samples using vacuum e.g. for DNA or RNA samples
• Temperature range: 35 °C to 65 °C (0.1 °C increments)
• 3 selectable rotation speeds: 1,700 rpm, 2,500 rpm, or 5,000 rpm
• Timer: up to 99 hours and 59 minutes
• LED display for temperature and timer
• Built-in oil-free vacuum pump (diaphragm pump)
• Separately available rotors for different tube sizes (0.5 to 30 ml)

Multi functional workstations

for cell isolation or cell handling

• Possibilities of contamination are reduced since multiple operations can be performed with one equipment
• The following integrated equipment is included:
  • Laminar air flow cabinet with HEPA filter and UV lamp
  • Centrifuge
  • Shaking incubator: 30 to 300 rpm and temperature range ambient 5 °C above ambient to 60 °C
• Supplied with foot pedals to start and stop centrifuge and shaking incubator
• Optional accessories on request
